| Model |

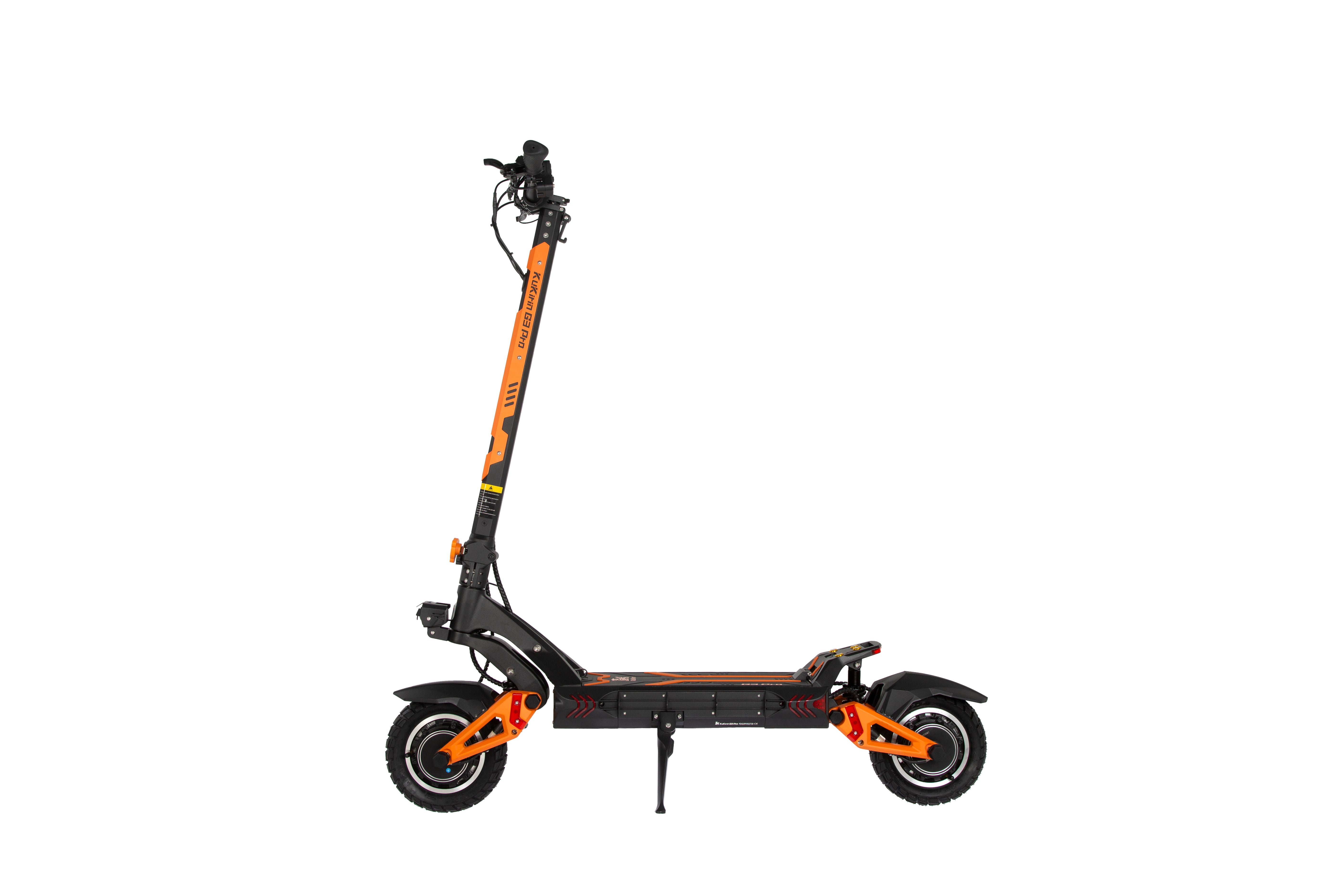

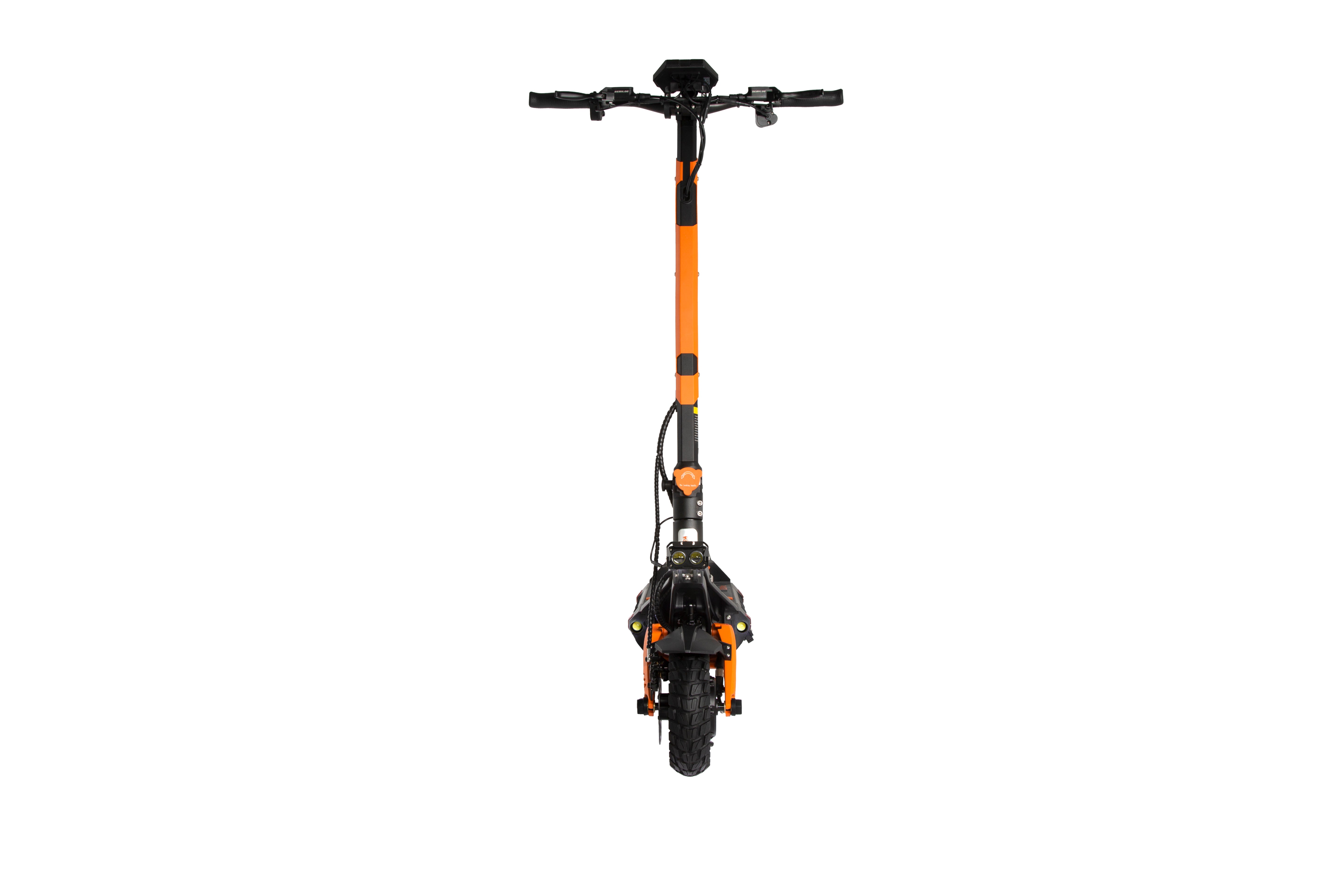

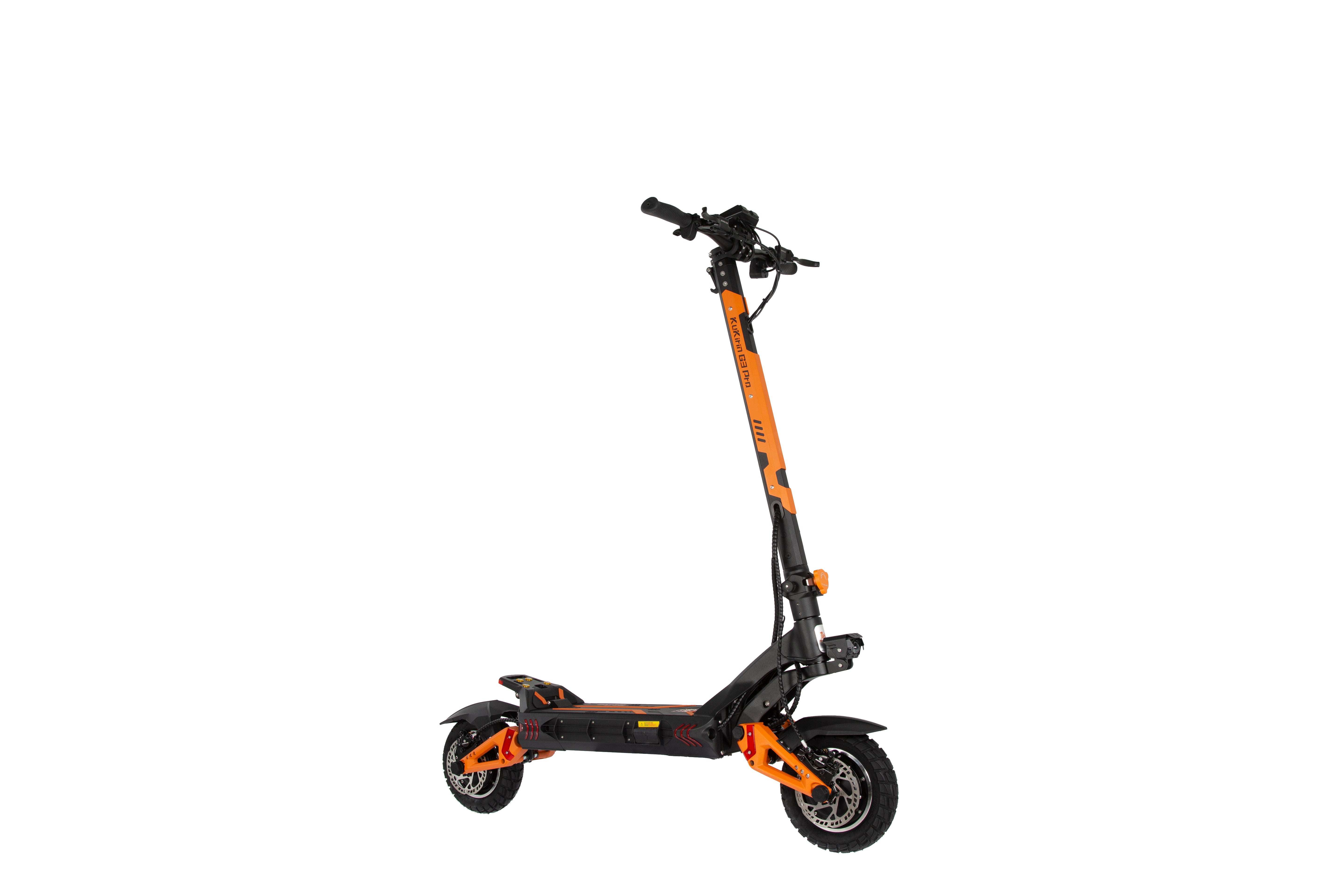

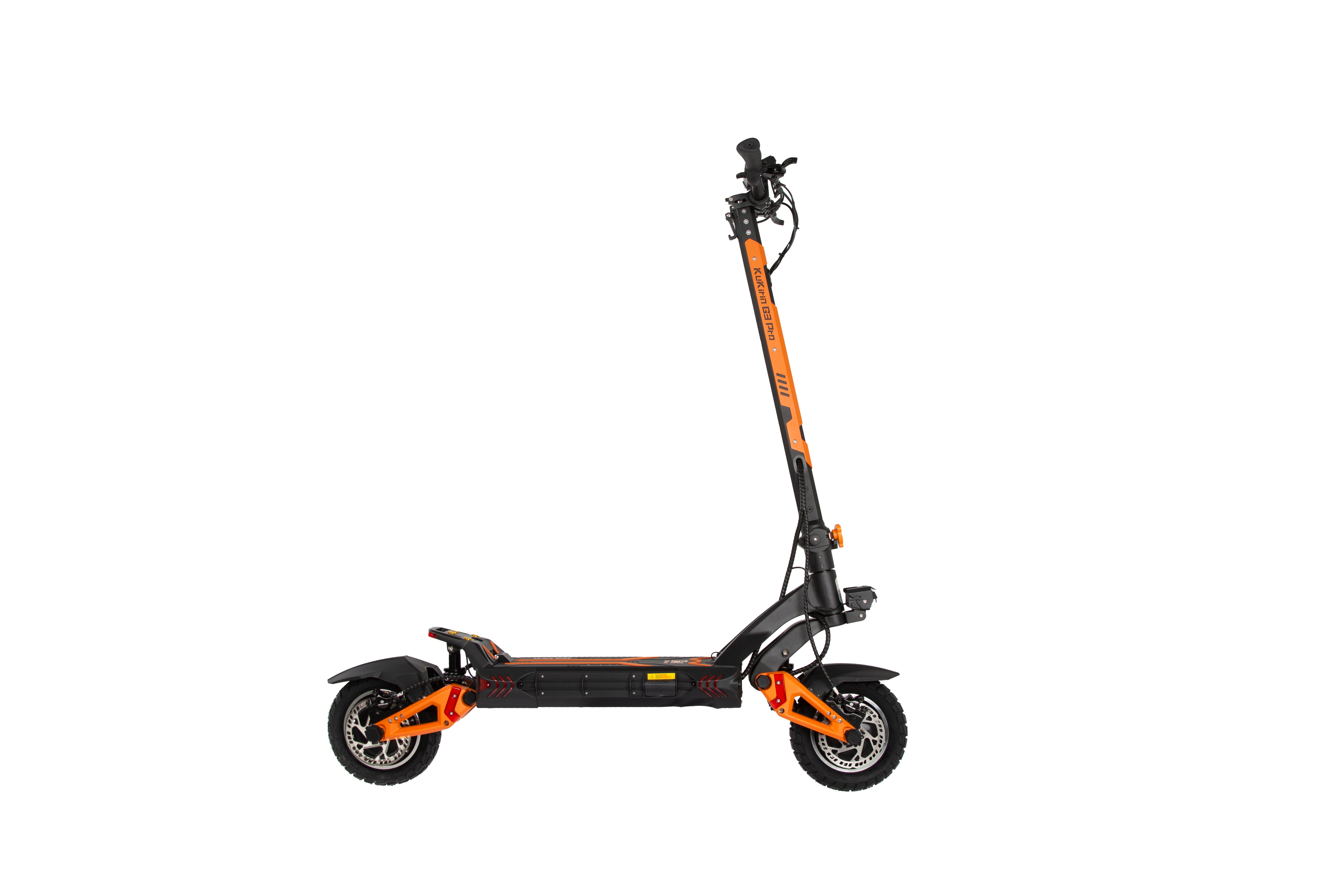

KuKirin G3 Pro |
Measurement reference standard(note:unit) |
| Packing info |
Packing size |
1315*300*615mm(inner)/1330*312*645mm(outer) |
Inner and outer box size(mm) |
|
Product basic parameter
|
Weight
|
Product G.W |
50.5±0.5kg |
Total weight of product and canton(kg) |
| Product N.W |
44±0.5kg |
Scooter weight(kg) |
|
Size
|
Expend size |
1295*630*1360mm |
L*W*H(mm) |

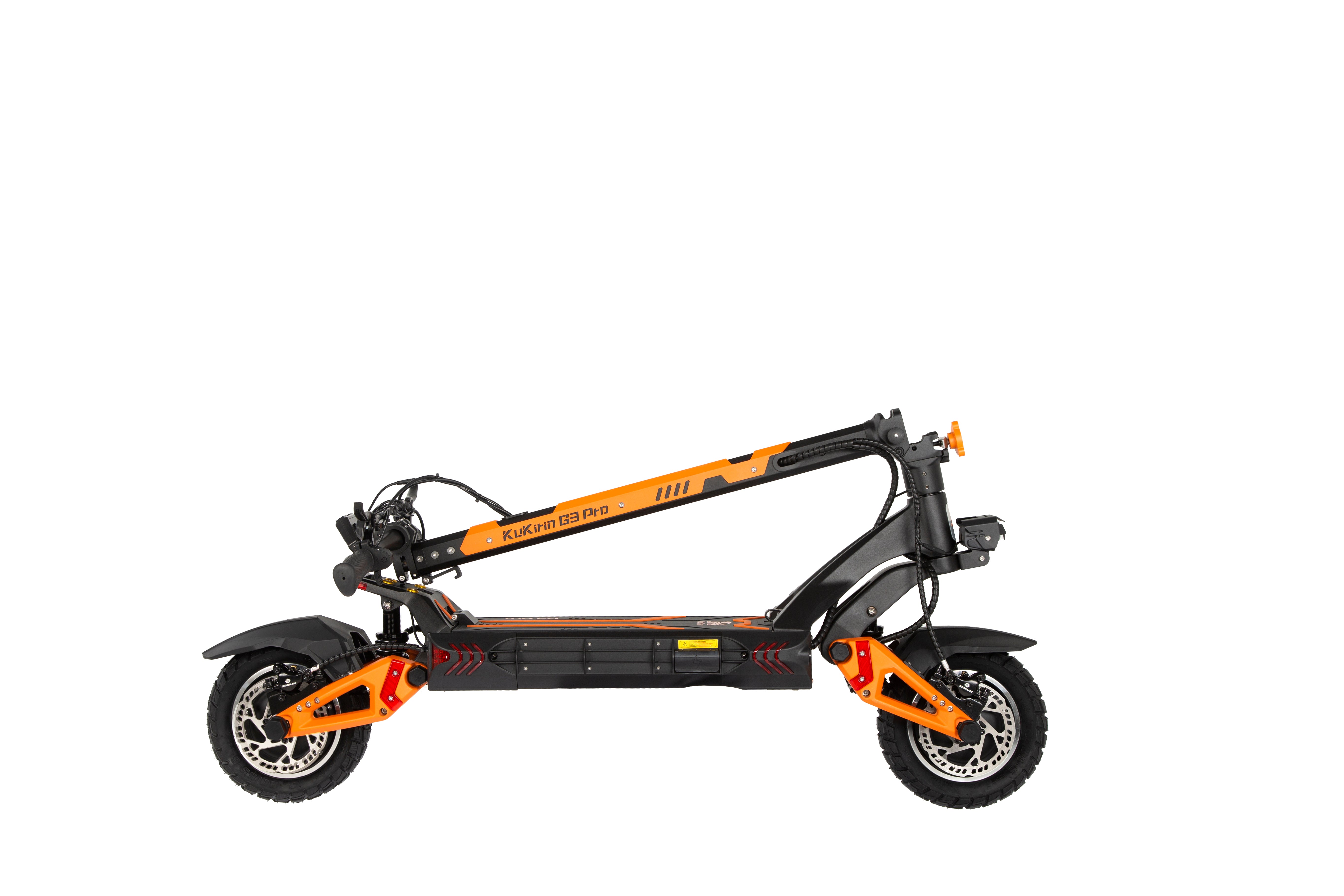

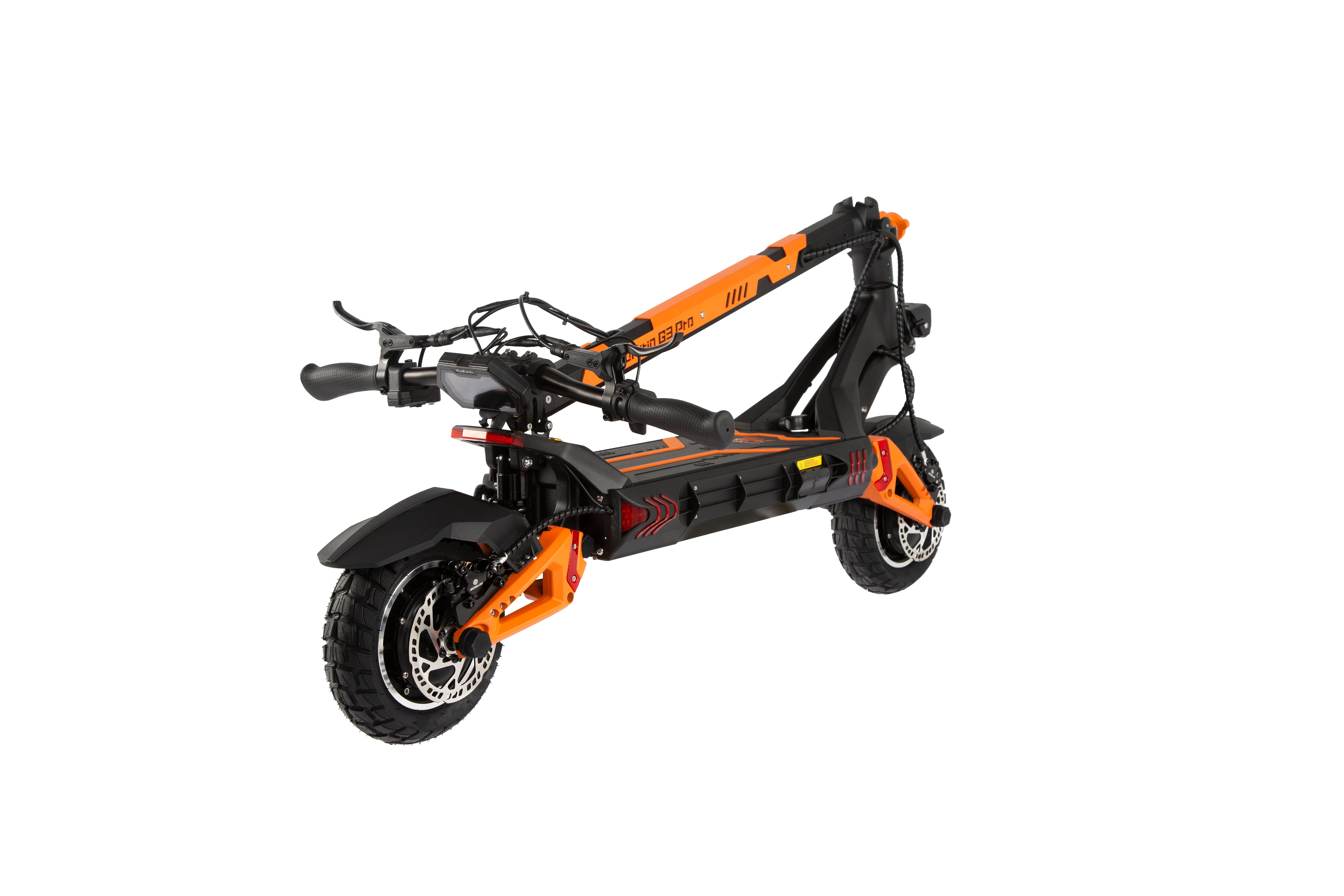

| Fold size |
1295*630*595mm |
L*W*H(mm) |
| Handlebar size |
650mm |
Diameter(mm) |
| Pedal Size |
550*210mm |
L*W(mm) |
| Pedal to Handlebar size |
1050mm |
Pedal to highest handlebar distance(mm) |
| Chassis height |
180mm |
height from chassis to ground floor(mm) |
| Max Load |
120kg |
kg |
|
Speed
|
Maxium speed |
65km/h |
Max speed of 65KG load(km/h) |
1st、2nd、3rd (Single drive) |
25km/h、45km/h、55km/h |
Max speed of 65KG load(km/h) |
1st、2nd、3rd (dual drive,65kg load) |
25km/h、45km/h、65km/h |
Max speed of 65KG load(km/h) |
| Mileage |
Middle speed mileage(65kg load) |
≤80km |
Full power,until to stop(km) |
|
Performance
|
Climbing ability |
≤35°slope |
65KG load,Max climbing ability(°) |
| Brake system |
Front and rear oil disc&e-brake |
Disc brake、E-brake、other |
| Brake distance |
5-10m |
Max speed braking stopping distance(m) |
| Waterproof level |
IP54 |
IP |
| Material |
Frame material |
Aluminum alloy |
|
|
Motor
|
Motor type |
Hall brushless DC motor (front and rear wheel dual drive) |
Integrated/split/other hub motor |
| Voltage |
52V |
V |
| Accelerate mode |
Sine wave |
Sine wave/square wave/dual modes |
|
Power date
|
Rated power |
1200W*2 |
W |
| Instantaneous maximum power |
1500W*2 |
W |
| Rated speed |
1290 rpm |
rpm or r/min |
| Max output torque |
33.26 N·m |
N·m |
|
Battery
|
Model |
18650 Lithoum battery |
|
| Voltage |
52V |
V |
|
Capacity
|
Single cell capacity |
2600mAh |
mAh |
| Battery pack capacity |
23.4Ah |
Ah |
| Standard power consumption |
1.04kW·h |
kW·h |
| Battery protect system |
Battery protective board(BMS) |
|
|
Charger
|
Input voltage |
180-240VAC~50/60Hz |
VAC |
| Input current |
2A Max |
A |
| Output voltage |
58.8V |
VDC |
| Output current |
2A |
A |
| Charging time |
6-7h(2A*2) |
h |
|
Shock absorber system
|
Front shock absorber |
Hydraulic shock absorber |
Spring shock absorption/Hydraulic damping shock absorption/other |

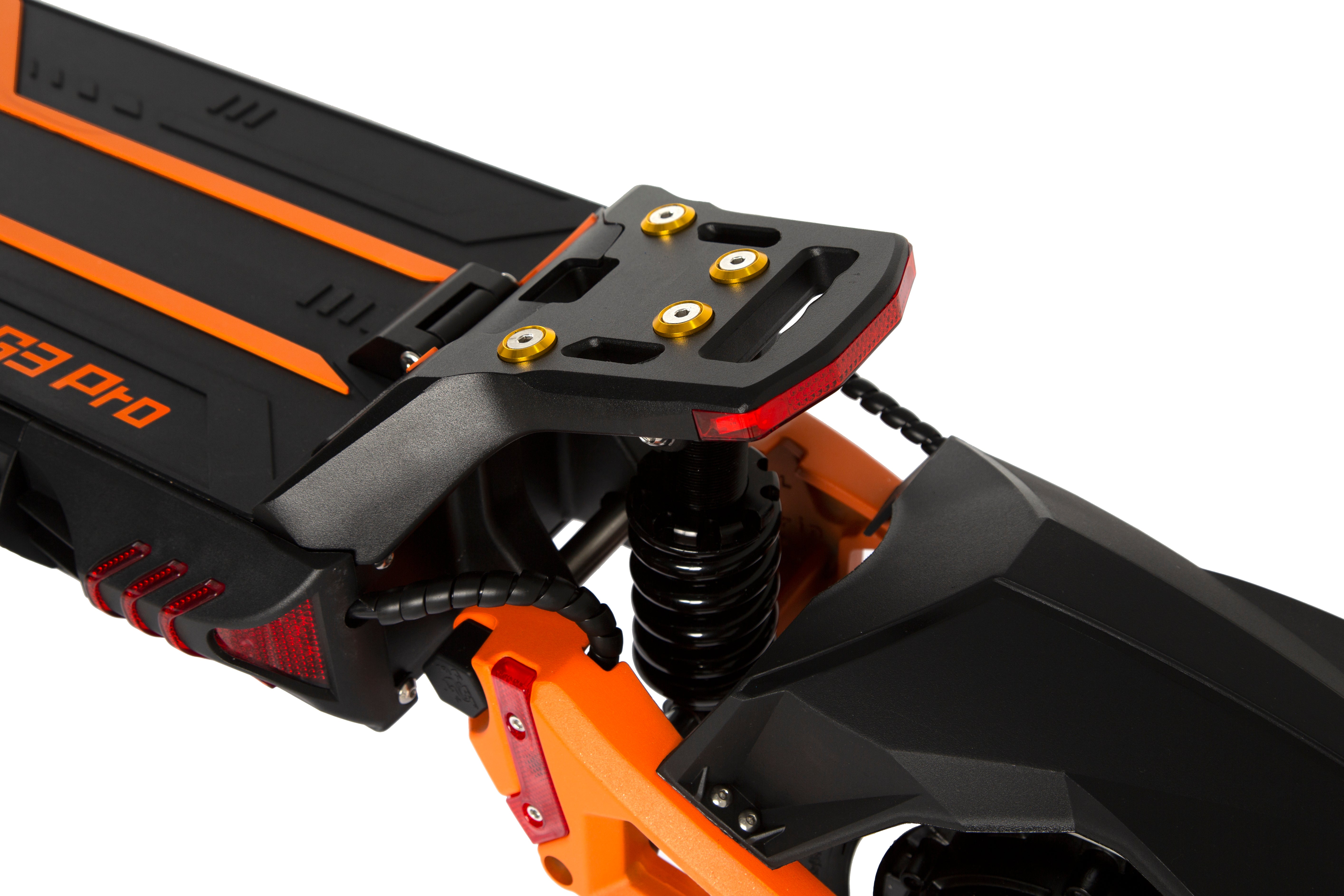

| Rear shock absorber |
Hydraulic shock absorber |
Spring shock absorption/Hydraulic damping shock absorption/other |
|
Light System
|

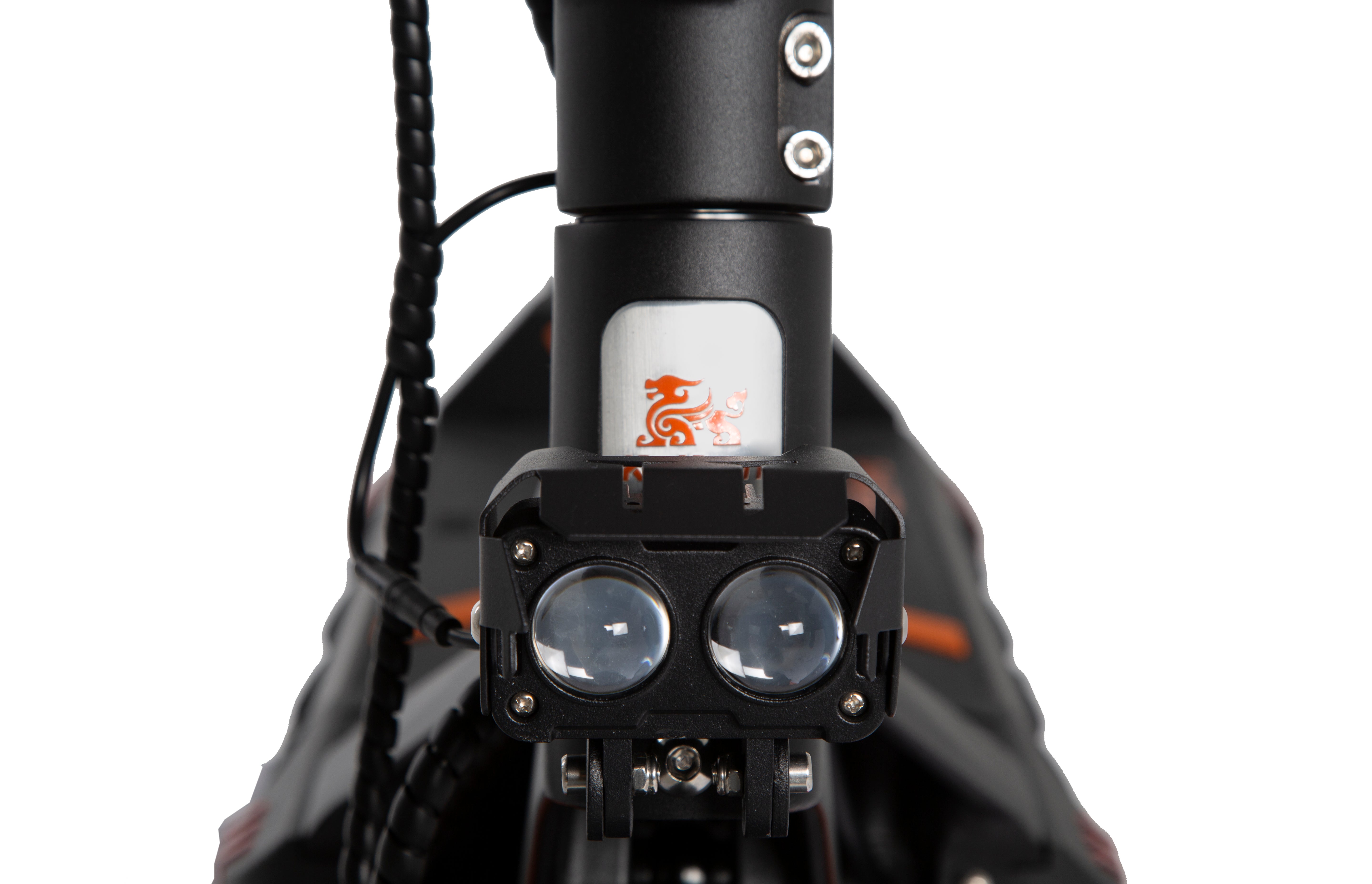

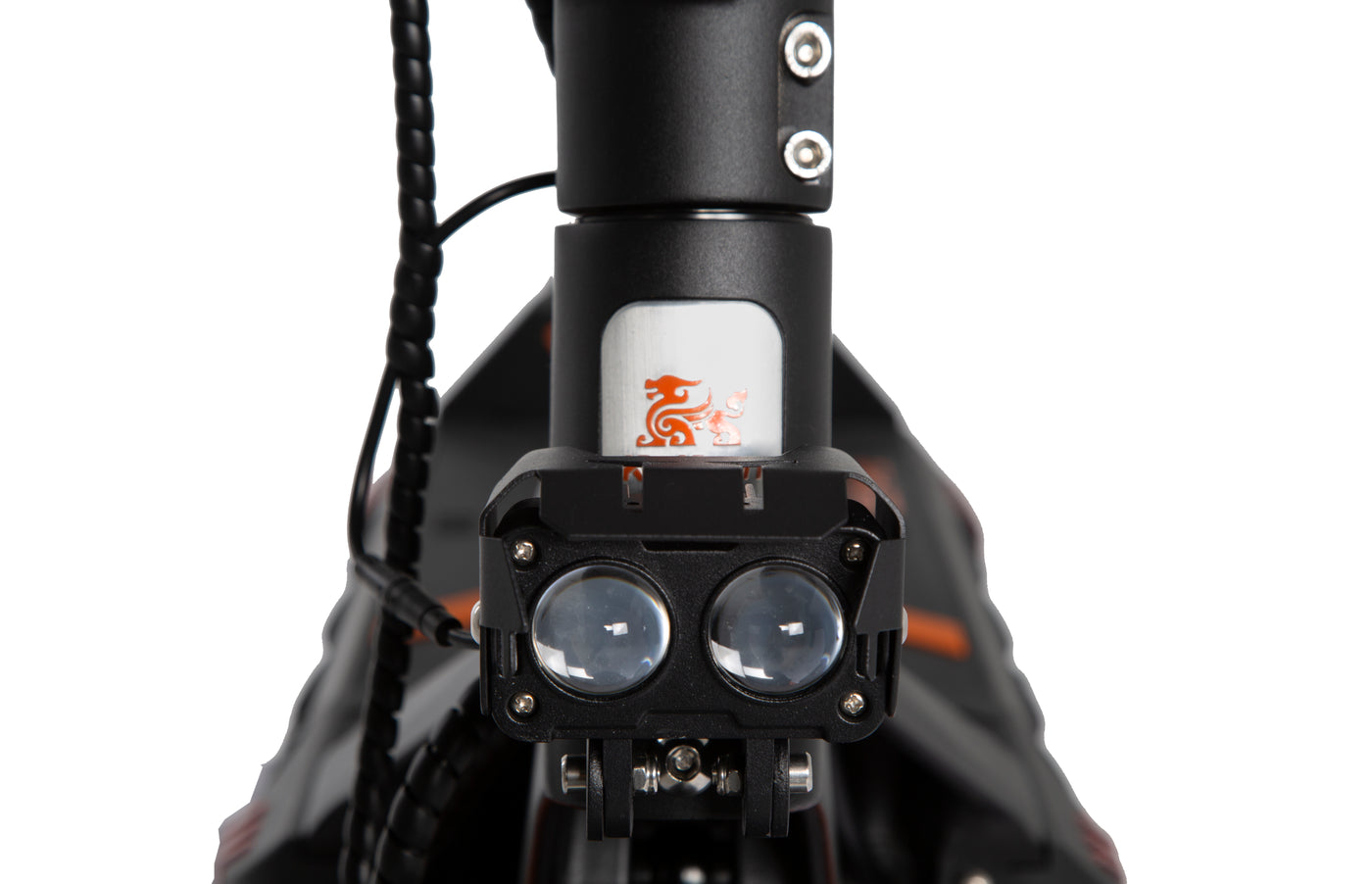

Headlight type |
LED |
light source |
| Headlight power |
15W |
W |
| Headlight illumination angle |
120° |
Illumination viewing angle width(°) |
| Headlight illumination area |
25㎡ |
The maximum area normally projected onto the ground(㎡) |
| Turn light |
Yes |
|

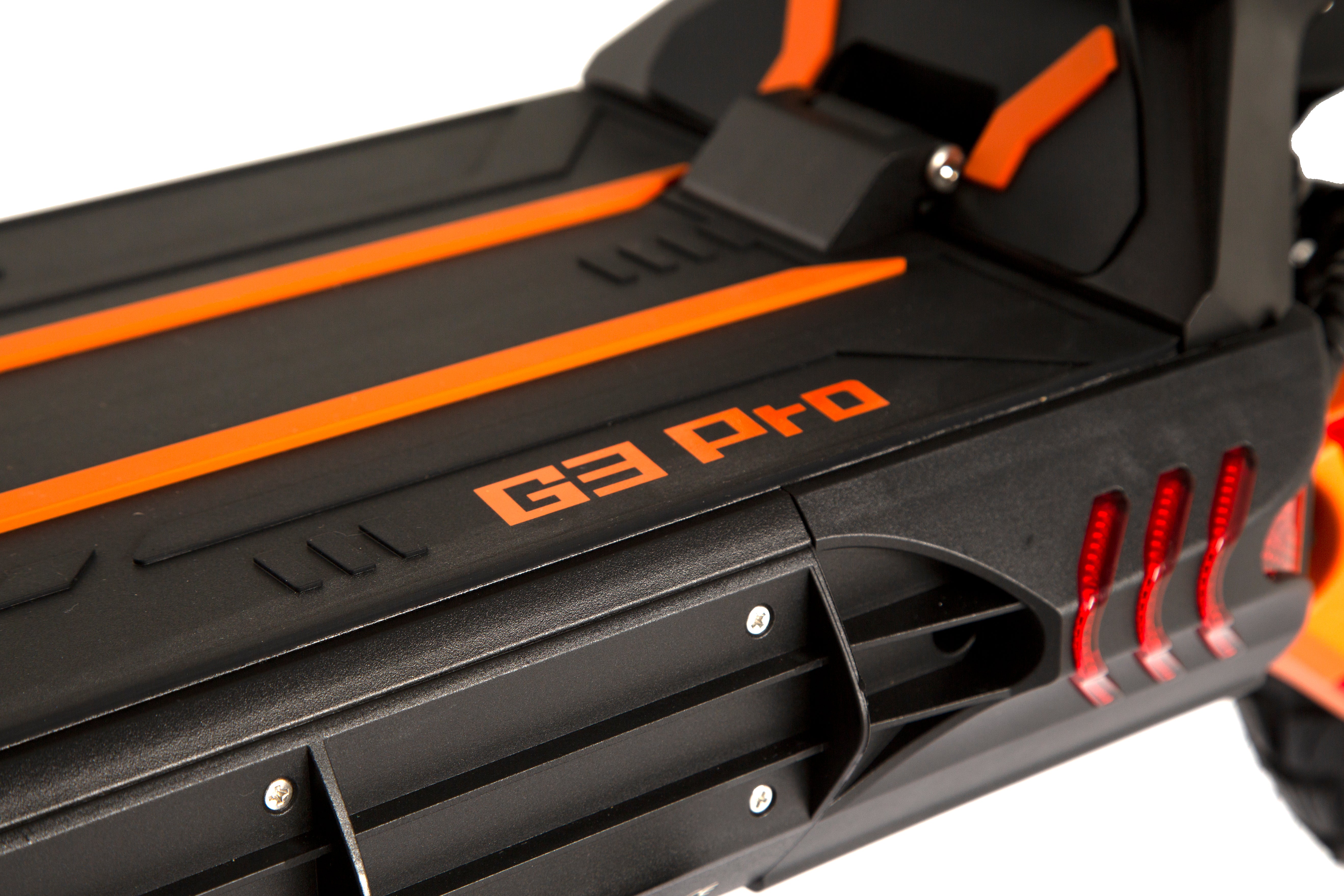

| Taillight |
Yes,The taillights are on when the headlight is on, taillight flash when breaking. |
|
|
Tire
|
Size |
10in(255*80mm) |
tire size( in/mm) |
| Type |
Pneumatic tire |
Off road/Honeycomb/Vacuum/Pneumatic tire |
| Optimum tire pressure |
350kPa(50psi) |
kPa/psi |
|
Insrument
|
Type |
LCD |
LED/LCD/OLED |
| Display material |
Instrument case ABS/instrument bracket PA6 |
|
| Size |
133*76mm |
L*W(mm) |
| Show content |
Light indication, cruise indication, brake indication, turn indication, gear indication, mileage indication, real-time speed indication, kilometer/mile indication unit, battery power indication, fault code indication, start mode indication, single and dual drive indication, etc. |
|
| Function setting |
After you press the power button three times in a row to enter the menu setting interface, the instrument will display P1, P2, P3, P4, P5, P6, P8, PA, PB, and PC, which respectively represent: P1 is the kilometer/mile selection setting; P2 is the voltage level setting; P3 is the wheel diameter setting; P4 is the magnetic pole pair setting; P5 is the cruise and no cruise selection setting; P6 is the non-zero start and zero start selection setting; P8 is the automatic sleep time setting; PA is the start force setting; PB is the brake force setting; PC is the total mileage clearing 0 setting; Speed limit mode: hold the brake handle and double-click the power button at the same time. |
Check instrument manual for details |
| Packing list |
User manual*1,charger*2, tool*1, pump*1, inner tube*1, brand sticker*1, key*2 |
without electric scooter |
